Power
|
57.1 (max)
|
|
Weight
|
15.15 Pounds (6.87Kg)
|
|
CPU
|
Multicore CPU
|
|
RAM
|
4 G
|
|
Features
|
●EEM
● RPS Support
● IP service-level agreements (SLAs)
● Advanced IP unicast routing protocols
● Jumbo Frames
● VLANS
●Voice Vlan
●VTPv2
●CDPv2
●LLDP
● 802.3ad LACP and PAgP
● PVST/PVST+
● 802.1W/802.1S
●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP)
● port CoS Trust and Override
● Trusted Boundary
● ACL Classification ●ingress Policing
● Auto QoS
● Per VLAN policies
● 802.1p queues
● Scheduling
● Priority Queuing
● Configure CoS Priority Qu
|
|
Capacity
|
88Gbps
|
|
Interface
|
● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
● Management console port: RJ-45-to-DB9 cable for PC connections
|
|
Height (in / mm)
|
1.73 Inches (4.4 Cm)
|
|
Width (in / mm)
|
17.5 Inches (44.5 Cm)
|
|
Depth (in / mm)
|
17.625 Inches (44.5 Cm)
|
|
Bandwidth
|
160Gbps
|
|
Port
|
24 x 10/100/1000 + 4 x 1G SFP
USB (Type-B), Ethernet (RJ-45)
|
|
Standard
|
● IEEE 802.1D Spanning Tree Protoco
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1X-Rev
●IEEE 802.11
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
|
|
Warranty
|
3 months warranty
|
|
Barcode
|

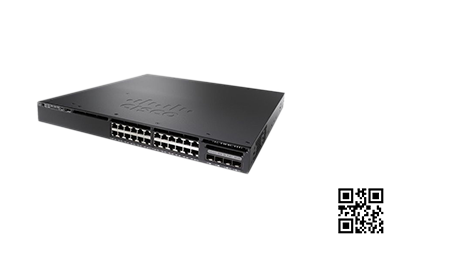

WS-C3650-24TS-E
|
